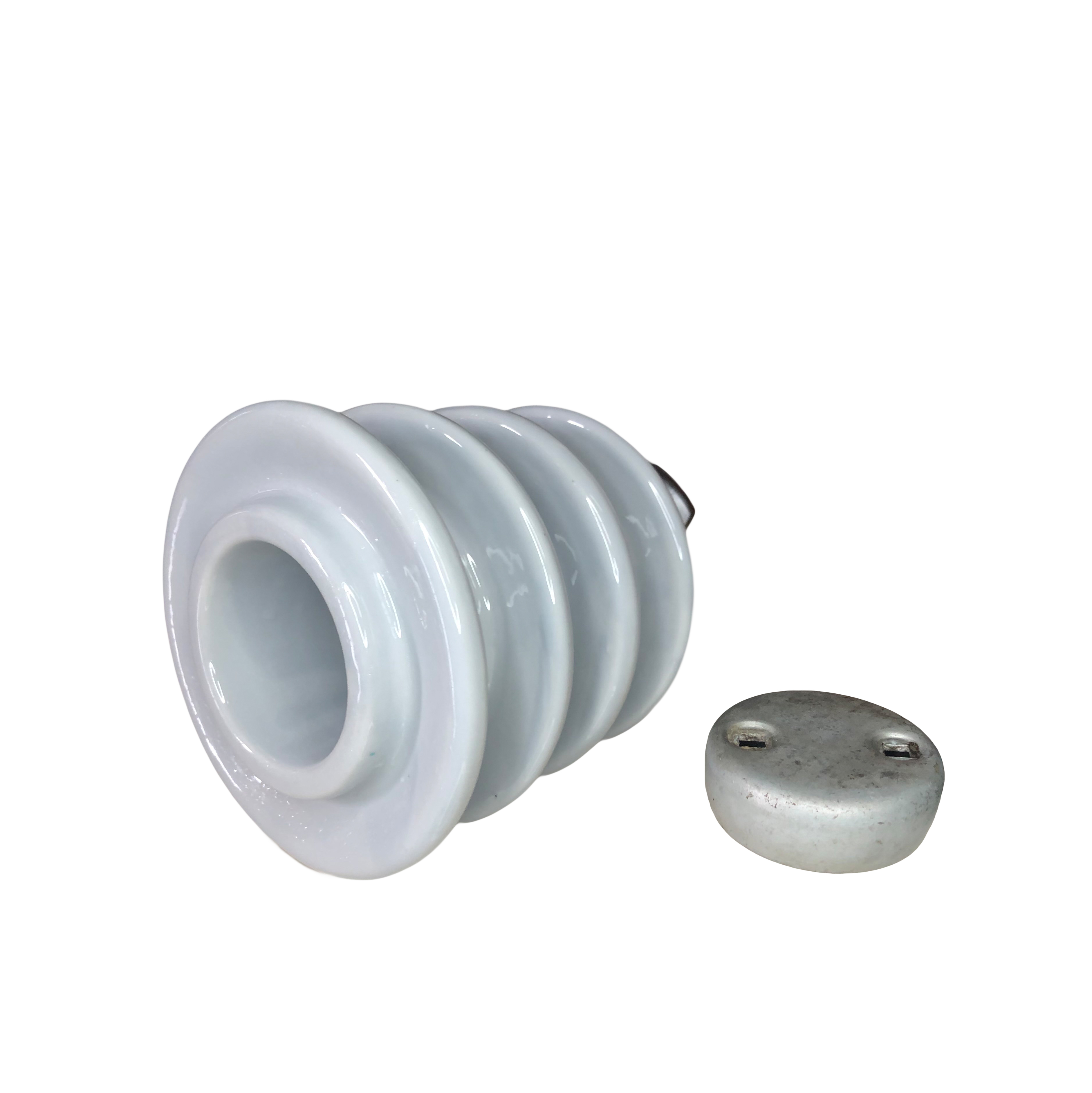

Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized

Brand Name : CPE

Model Number : INK20

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 5000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : Light gray， brown

Material : Porcelain C-120

Application : Transmission and distribution of electric power

Standard : ANSI

Size : Customized Size

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

Line Post For Distribution Lines INK20 Iron Hot Deep Galvanizd

Description:

Line post porcelain insulators shall conform in all respects to the requirements of ANSI standard. The insulators shall be made of good commercial-grade wet-process porcelain.The entire surface of the insulator, with the exception of a firing surface, shall be glazed. If gray is required, it shall be in accordance with ANSI Z55.1-1967 (R1973). Metal parts shall be made of a good commercial grade of malleable iron, ductile iron, steel, or aluminum. Ferrous parts, other than stainless steel, shall be galvanized in accordance with ASTM A153.

Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Specifications:

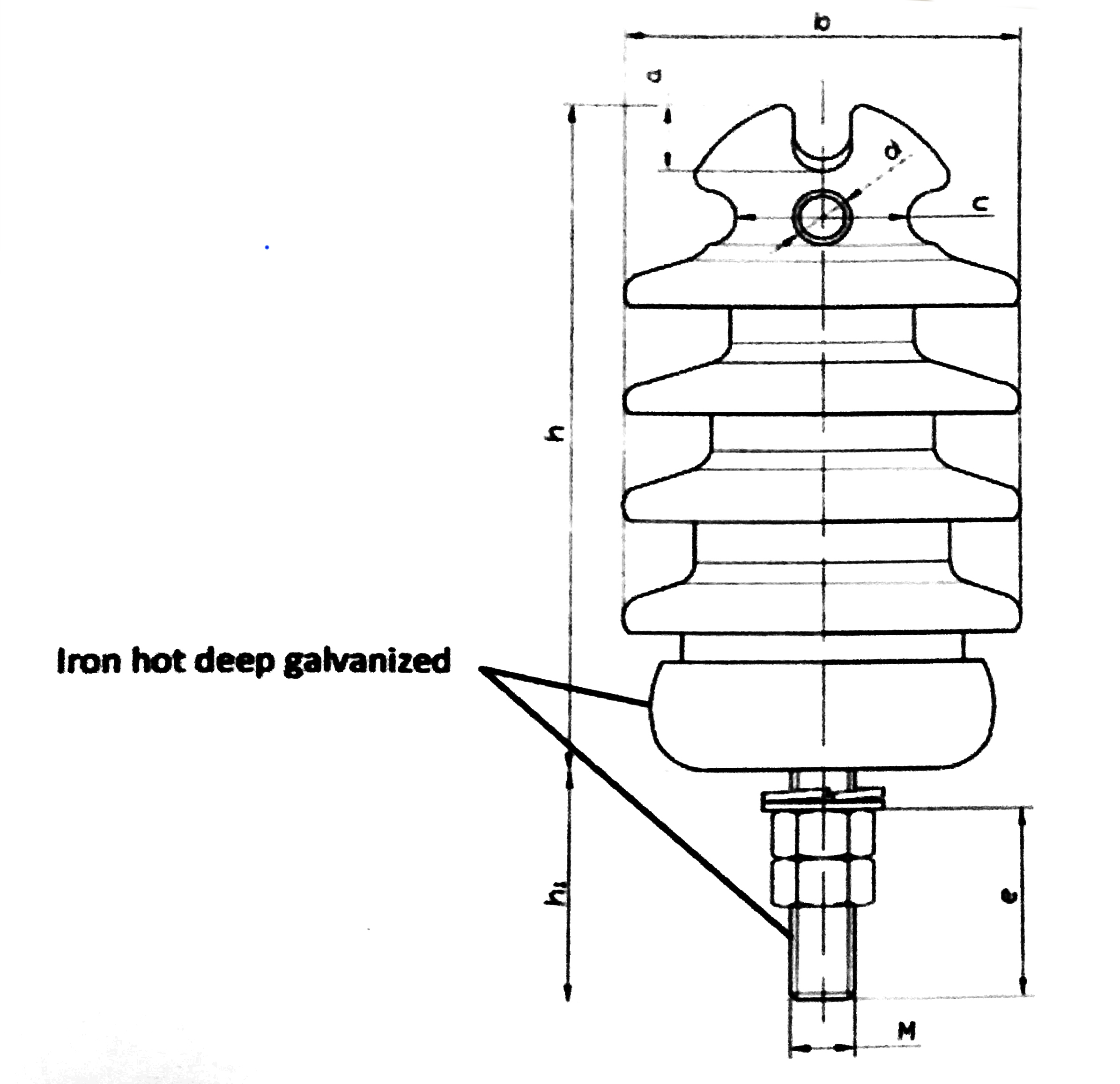

Dimensions in mm

type	H	B	h.	a	c	d	e	m
INK 20	305	170	108	51	75	21	77	24

Applications:
Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a cross-arm on the pole.

Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Features:

Our porcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.
