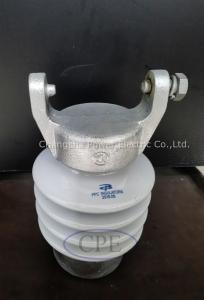

C-120 Porcelain 57-11 Line Post Insulators With Low Loss

Brand Name : CPE

Model Number : 5325

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : Light gray

Material : Porcelain C-120

Application : Transmission and distribution of electric power

Standard : ANSI

Size : Customized Size

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

High Mechanical Strength C-120 Porcelain 57-11 Line Post Insulator Low loss

Descriptions:

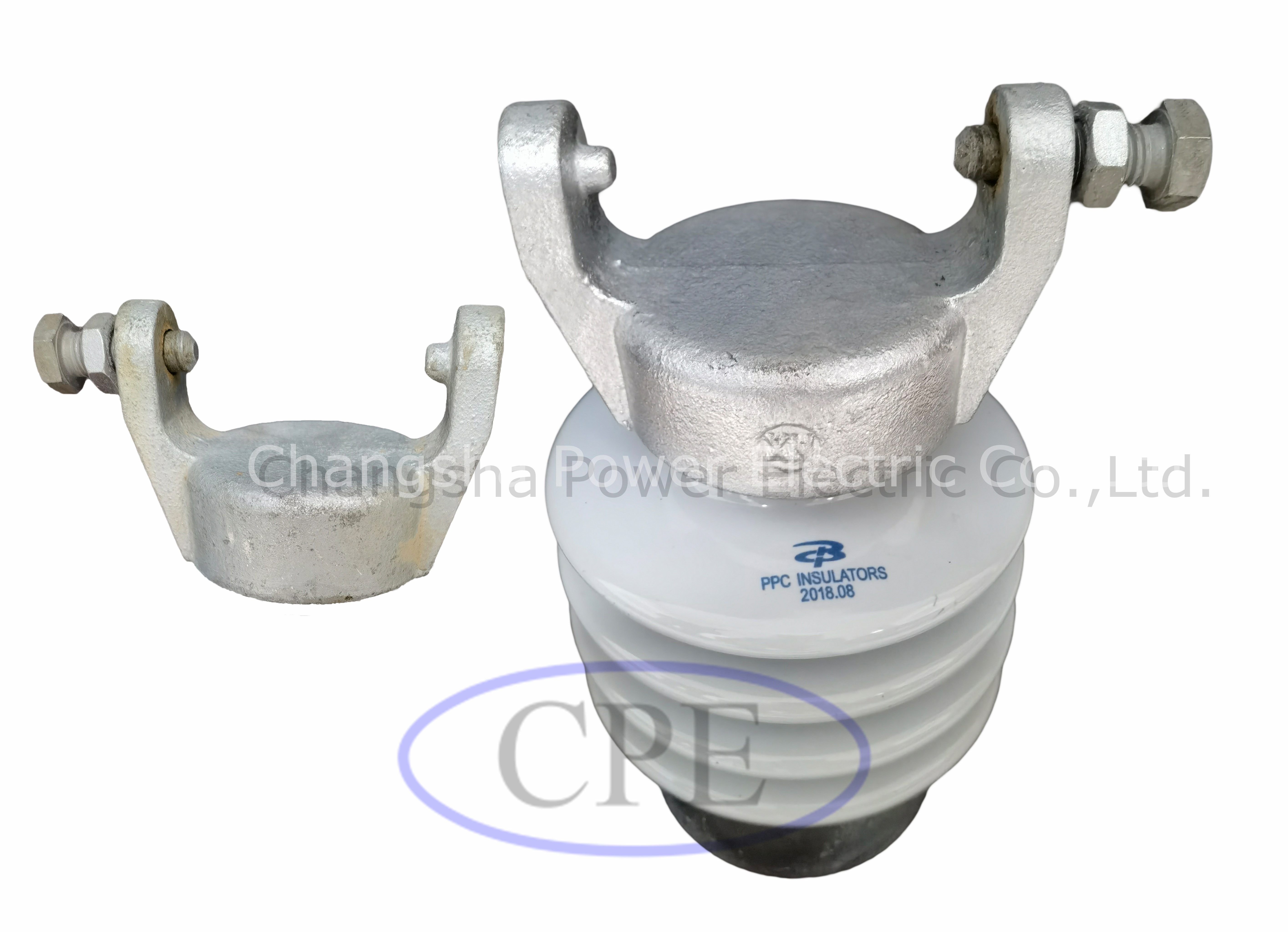

Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.

Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.

Either chocolate brown or Munsell gray glaze is available. caps and flanges are ferrous, hot dip galvanized. thread holes are proper tapped.

specification:

DIN 42531	Height(mm)	Creepage distance (mm)	Power frequency withstand voltage(kV)	Lightning impluse withstand voltage(kV)	Weight(kg)
30NF250	485	600	70	170	6.6

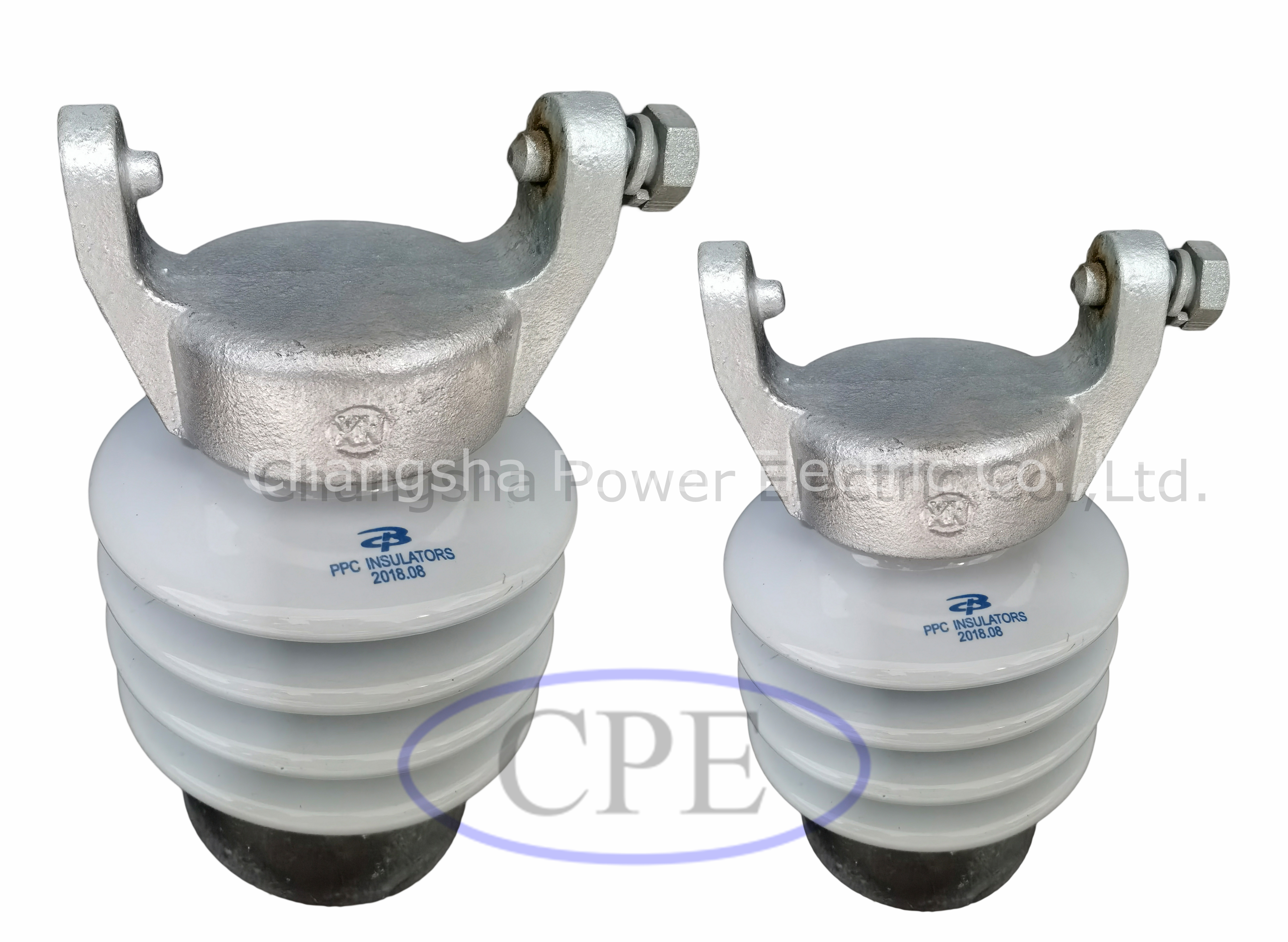

C-120 Porcelain 57-11 Line Post Insulators With Low Loss

Competitive advantages:

Low loss.

Low temperature rise.

Outstanding crack resistance.

Low thermal expansion coefficient.

High mechanical strength, strong weather ability.

Convenient transportation and flexible installation.

Stainless steel flange low magnetic inductivity high resistivity.

Reasonable insulation structure high reliability of inter-turn insulation.
