Capacitor Ceramic Bushings C4 1050 Porcelain Power Line Insulators For Dry Type Reactors
Description:
Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.

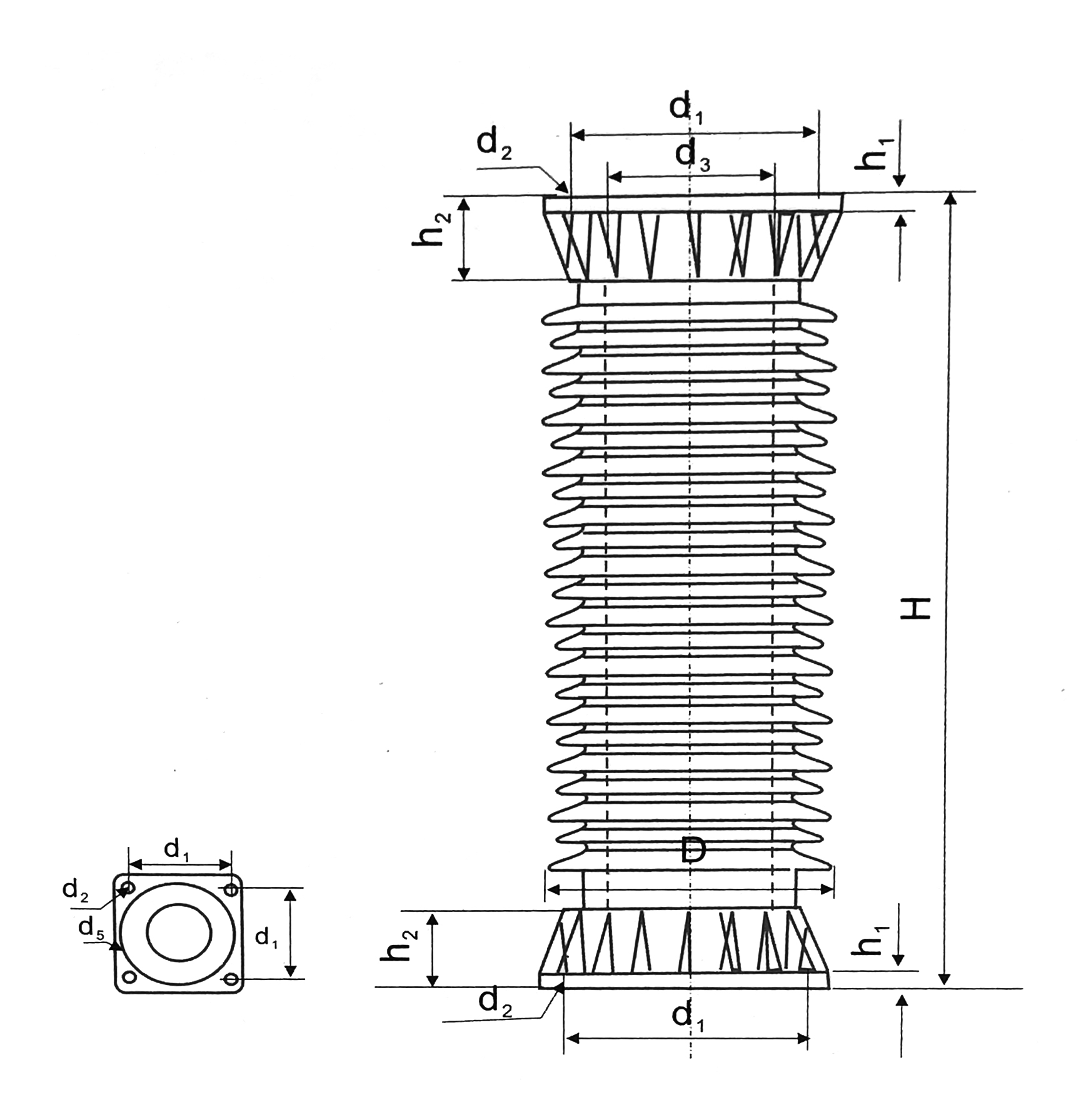

| Creepage | Bending | | 主要尺寸 mm | Shed | 重量 |
| Distance | failing | | Main Dimensions mm | No. | Weight |
| mm | kN.m | | | | ( kg ) |
| | | H | h1 | h2 | D | d1 | d2 | d3 | d4 | d5 | | / | |
| 3287 | 54.9 | 1400 | 30 | 140 | 475 | 455 | 10-Φ15 | 265 | / | / | | Big12small11 | 310 |
| 3287 | 28 | 1400 | 30 | 140 | 475 | 455 | 18-Φ15 | 265 | / | / | | Big12small11 | 293 |
| 4537 | 70 | 1600 | 25 | 140 | 450 | 410 | 8-Φ14 | 220 | / | / | | / | 321 |
| 4583 | 47 | 1700 | 25 | 135 | 430 | 410 | 16-Φ14 | 220 | / | / | | Big15small15 | 224 |
| 4263 | 56 | 1440 | 25 | 140 | 495 | 455 | 18-Φ15 | 265 | / | / | | Big164small14 | 365.4 |
| 5156 | 56 | 1800 | 25 | 140 | 480 | 455 | 18-Φ15 | 265 | / | / | | Big19small18 | 415.4 |
| 5050 | 70 | 1700 | 30 | 140 | 485 | 455 | 18-Φ15 | 265 | / | / | | Big18small17 | 375 |
Application:
Ceramic pillar insulators are used for insulation and support of live parts in outdoor power plants, distribution devices and electrical equipment of power frequency AC substations.
Competitive advantages:
Reasonable insulation structure high reliability of inter-turn insulation.
Small volume light weight
Stainless steel flange low magnetic inductivity high resistivity.
Convenient transportation and flexible installation.
Low loss
Low temperature rise
High mechanical strength, strong weather ability.
Outstanding crack resistance.
Low thermal expansion coefficient
