OEM 5335HP Light Gray Porcelain Line Post Insulator

Brand Name : CPE

Model Number : 57-1S

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : Light gray

Material : Porcelain C-120

Application : Transmission and distribution of electric power

Standard : ANSI

Size : Customized Size

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

ANSI OEM Porcelain 5335HP Line Post Insulator

Application:

Line post insulators are designed to provide rigid support of conducting cable while offering the maximum resistance to damage from electrical or mechanical events.

Descriptions:

We offers a wide range of porcelain station post insulators. For decades, these products have demonstrated reliable performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation.

Features:

High strength.
Factory price and prompt delivery.
High voltage application.
Material: Porcelain.
ANSI Approve.

specification:

ANSI CLASS	Height(mm)	Creepage distance (mm)	Dry arcing distance (mm)	BIL(kV)	Torsion strength (N.m)
34.5kV	740	1055	467	200	20.3

Service:

Timely delivery.
Twenty four hours on-line service.
After delivery, we will track the products for you, until you get the products. When you got the goods, test them, and give us a feedback.

Product Tags:

5335HP Porcelain Line Post Insulator

Light Gray Porcelain Line Post Insulator

oem post type insulators

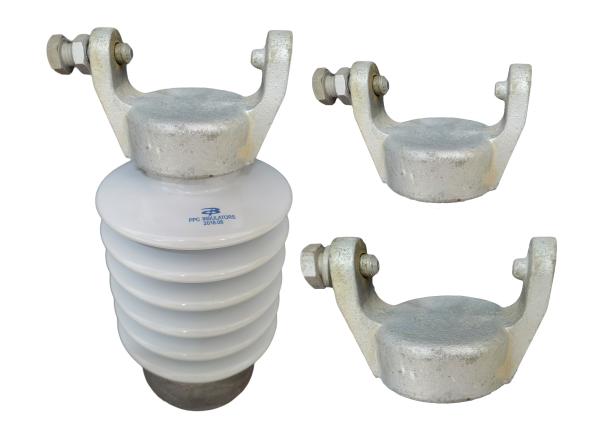

OEM 5335HP Light Gray Porcelain Line Post Insulator Images
