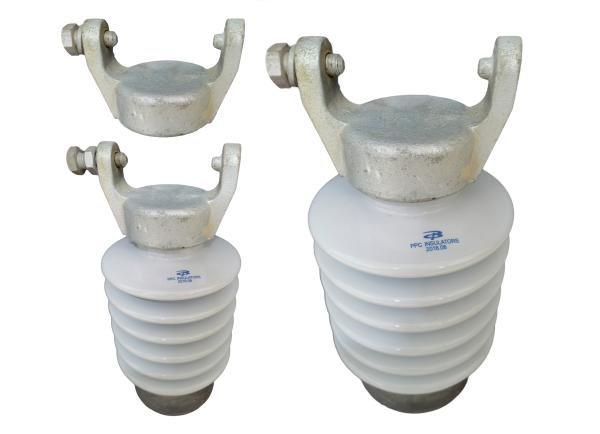

Porcelain 5335 Line Post Insulator ANSI OEM
Features:
We offers a wide range of porcelain post insulators. For decades, these products have demonstrated reliable performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.
Hardwares:
Our insulators have externally attached caps or bases. a highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.
Porcelain body:
Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain . the body is glazed to add strength improve surface appearance, and enhance clean-ability.
specification:
| DIN 42539 |
DIN 42540 |
DIN 42541 |
DIN 42542 |
DIN 42543 |
| DT3/250A+B |
135+55 |
120 |
30 |
90 |
Applications:
post insulators are designed to provide rigid support of conducting cable while offering the maximum resistance to damage from electrical or mechanical events.
Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a cross-arm on the pole.
Competitive advantages:
Reasonable insulation structure high reliability of inter-turn insulation.
Stainless steel flange low magnetic inductivity high resistivity.
Convenient transportation and flexible installation.
High mechanical strength, strong weather ability.
Low thermal expansion coefficient.
Outstanding crack resistance.
Low temperature rise.
Low loss.
