Light Gray Line Post Porcelain Insulators ANSI

Brand Name : CPE

Model Number : 5225HP

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : Gray

Material : Porcelain C-120

Application : Transmission and distribution of electric power

Standard : ANSI

Size : Customized Size

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

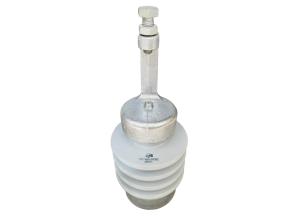

Light Gray ANSI 5225HP Line Post Porcelain Insulators

Features:

Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability. Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.

Description:

We offers a wide range of porcelain station post insulators. For decades, these products have demonstrated reliable performance in various types of applications all over the world.

Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.

specification:

ANSI CLASS	Height(mm)	Creepage distance (mm)	Dry arcing distance (mm)	BIL(kV)	Torsion strength (N.m)
25kV	451	580	270	150	20.3

Competitive advantages:

Products are produced by ourselves, which ensures competitive prices, good profit margin and flexible services

OEM & ODM services are acceptable and various styles, latest designs are recommended once in a while;

We have large market share home and abroad;

We have lots of experience in providing good service to retailers.
